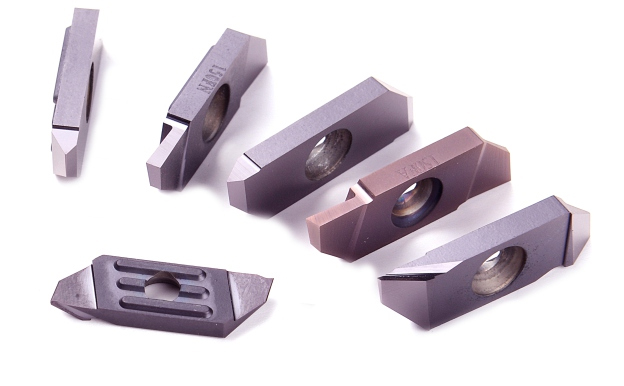

CMTP** parting insert

材料舉例

Material Examples

軟鋼及鋼件

Steel

P

●

●

●

●

12L14,SUM24L,45#,40cr

不銹鋼

Stainless Steel

M

●

●

●

SUS201,304,316,416,420,440

鈦合金

Titanium Alloy

S

●

●

●

TC6,TC2,TC3,TC4,TB2,TA3,TA4

耐熱合金

Superalloy

S

●

●

●

718,GH4169,Kovar,GH5188

有色金屬

Non-Fe metals

N

●

2024,5083,6061,5005,2A12

淬火鋼

Hardened steel

H

●

HRC-55

ISO

r

Tmax

CP1120

CP2630TN

CP6230MS

CP2130

CW20

CT20

右手平口切槽

CMTPR050-FN

0.05

4.0

●

●

●

●

CMTPR080-FN

0.05

4.0

●

●

●

●

CMTPR100-FN

0.10

5.5

●

●

●

●

CMTPR125-FN

0.10

5.5

●

●

●

●

CMTPR150-FN

0.10

5.5

●

●

●

●

CMTPR175-FN

0.10

5.5

●

●

●

●

CMTPR200-FN

0.10

2.0

●

●

●

●

CMTPR250-FN

0.10

3.0

●

●

●

●

右手斜口切斷

CMTPR050-FA

0.00

2.0

●

●

●

●

CMTPR080-FA

0.00

3.5

●

●

●

●

CMTPR100-FA

0.05

5.0

●

●

●

●

CMTPR125-FA

0.05

5.5

●

●

●

●

CMTPR150-FA

0.05

6.5

●

●

●

●

CMTPR175-FA

0.05

6.5

●

●

●

●

CMTPR200-FA

0.05

6.5

●

●

●

●

CMTPR250-FA

0.10

6.5

●

●

●

●

右手后掃刀片

CMTPR250-BV

0.10

4.0

●

●

●

●

右手螺紋

CMTPR55005

0.05

55°

○

○

●

●

CMTPR5501

0.1

55°

○

○

●

●

CMTPR5502

0.2

55°

○

○

●

●

CMTPR60005

0.05

60°

○

○

●

●

CMTPR6001

0.1

60°

○

○

●

●

CMTPR6002

0.2

60°

○

○

●

●
